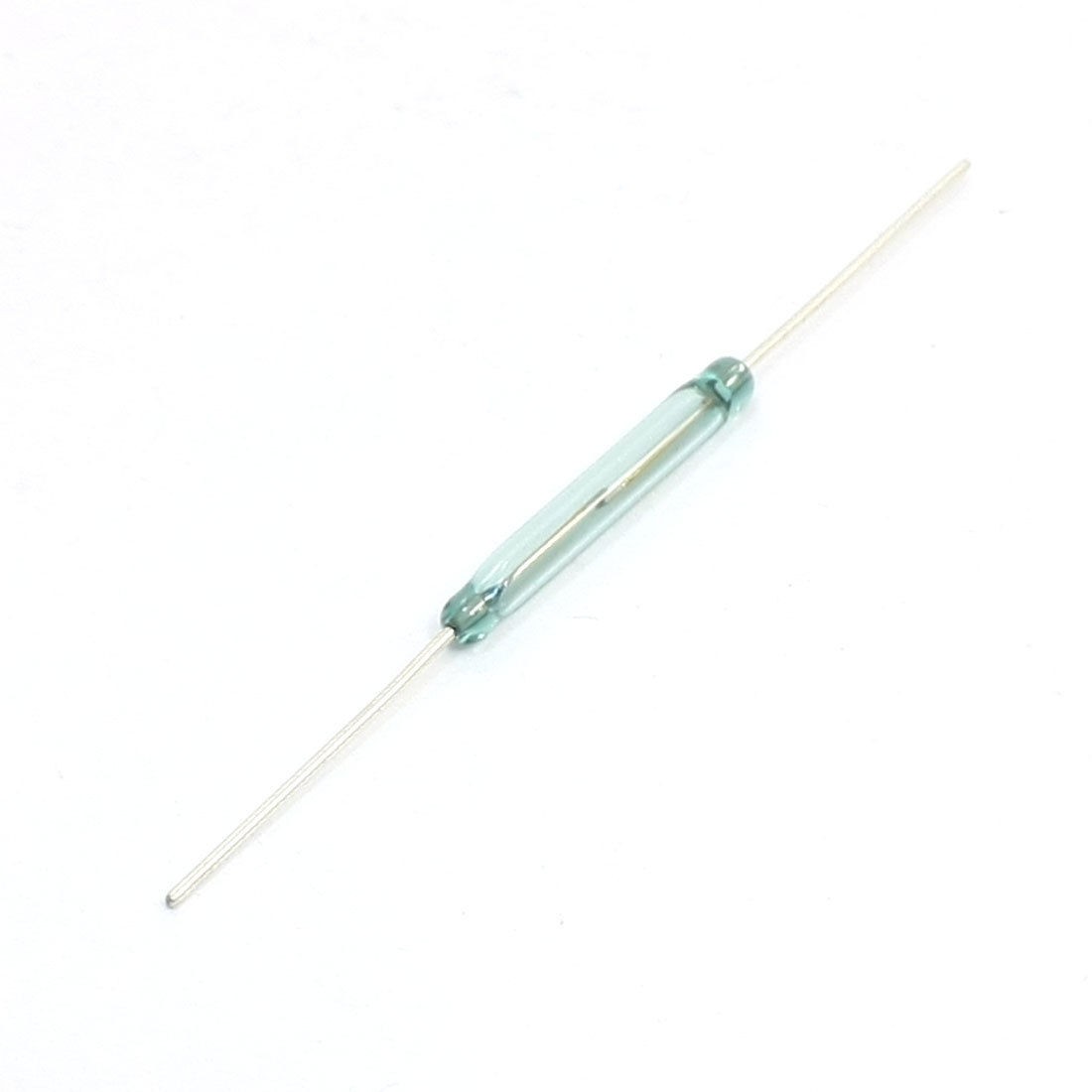

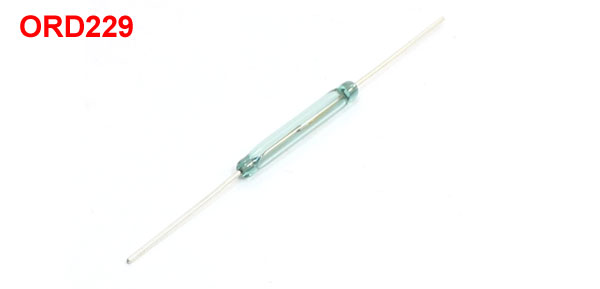

11mm x 2.5mm Anti Vibration Tube NO Reed Switch DC300V 0.7A ORD229

11mm x 2.5mm Anti Vibration Tube NO Reed Switch DC300V 0.7A ORD229

More Views

11mm x 2.5mm Anti Vibration Tube NO Reed Switch DC300V 0.7A ORD229
$4.26

Availability: In stock

OR
Description

Details

11mm x 2.5mm Anti Vibration Tube NO Reed Switch DC300V 0.7A ORD229

Product Name Reed Switch
Model ORD229
Contact Type NO(Normal Open)
Max. Contact Rating 50W
Max. Switching Voltage DC 300V
Max. Switching Current 0.7A
Max. Carry Current 2.5A
Min. Breakdown Voltage DC 600V
Max. Initial Contact Resistance 100mOhm
Min. Insulation Resistance 1010Ohm
Max. Release Time  0.05ms
Max. Operate Time   0.6ms
Tube Size (Approx.) 20 x 2.5mm/ 0.8" x 0.1" (L*D)
Lead Terminal Size(Each Side) 18 x 0.4mm/ 0.71" x 0.016"(L*D)
Total Length (Approx.) 56mm/2.2"
Material Glass, Metal
Color Gold Tone, Clear
Weight 1g
Package Content 1 x Reed Switch
