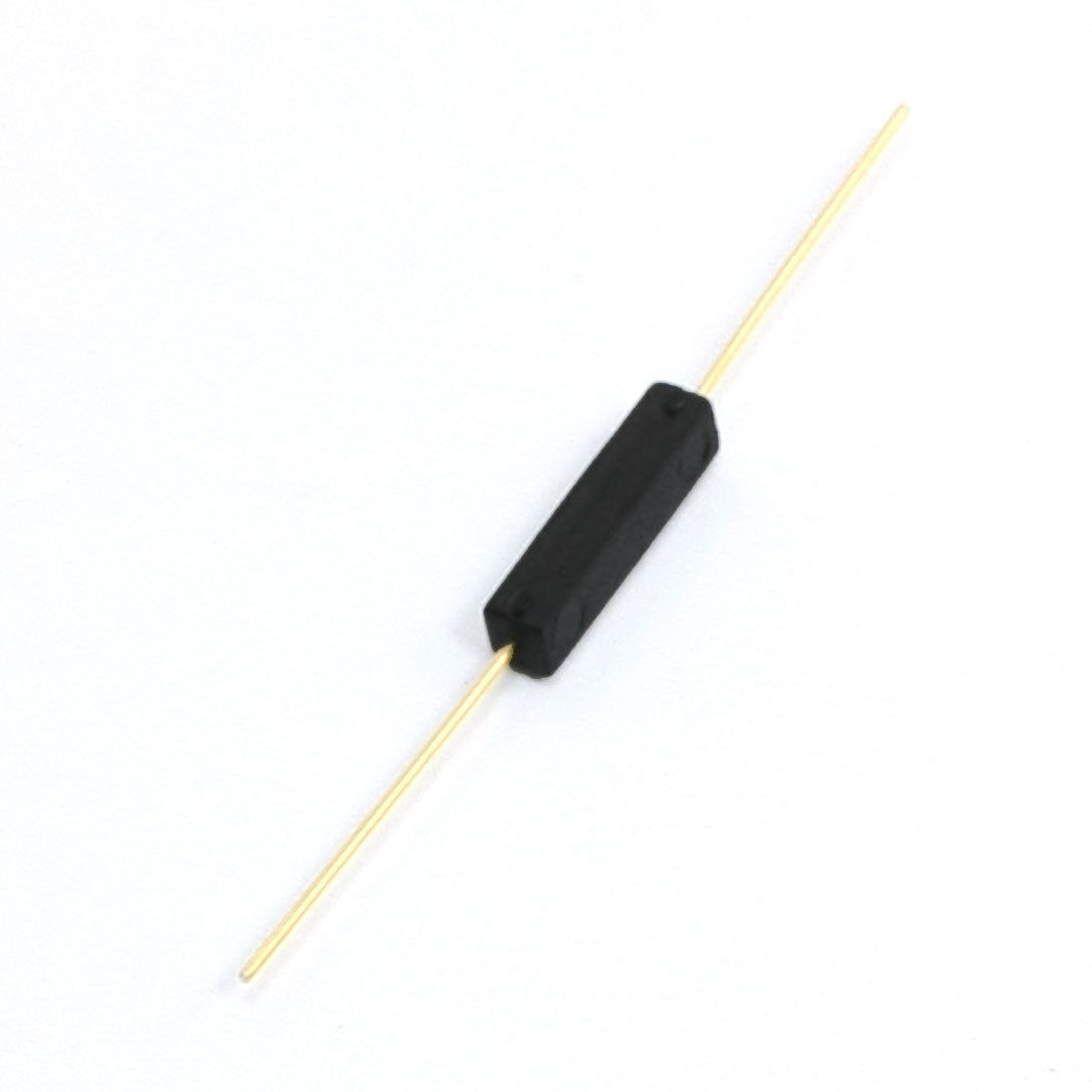

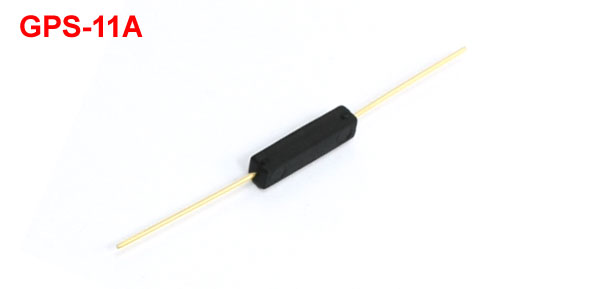

11mm x 2.5mm Anti Vibration Tube NO Reed Switch DC100V 0.5A GPS-11A

11mm x 2.5mm Anti Vibration Tube NO Reed Switch DC100V 0.5A GPS-11A

More Views

11mm x 2.5mm Anti Vibration Tube NO Reed Switch DC100V 0.5A GPS-11A
$3.64

Availability: In stock

OR
Description

Details

11mm x 2.5mm Anti Vibration Tube NO Reed Switch DC100V 0.5A GPS-11A

Product Name Reed Switch
Model GPS-11A
Contact Type NO(Normal Open)
Max. Contact Rating 10W
Max. Switching Voltage DC 100V
Max. Switching Current 0.5A
Min. Breakdown Voltage DC 150V
Max. Initial Contact Resistance 100mOhm
Min. Insulation Resistance 109Ohm
Max. Release Time  0.1ms
Max. Operate Time   0.4ms
Tube Size (Approx.) 11 x 2.5mm/ 0.43" x 0.1" (L*D)
Lead Terminal Size(Each Side) 15 x 0.4mm/ 0.6" x 0.016"(L*D)
Total Length (Approx.) 41mm/ 1.6"
Material Plastic, Metal
Color Gold Tone, Black
Weight 1g
Package Content 1 x Reed Switch
