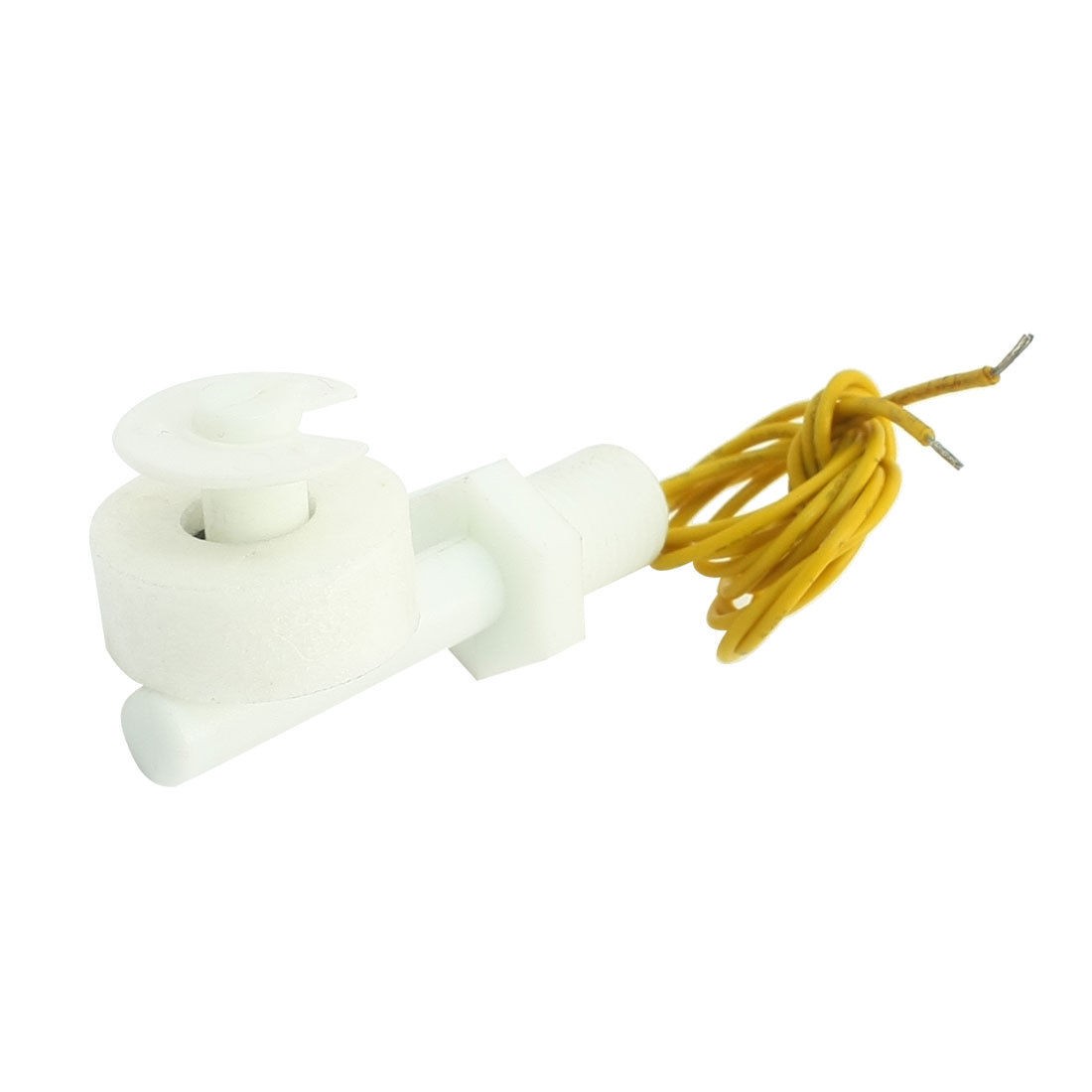

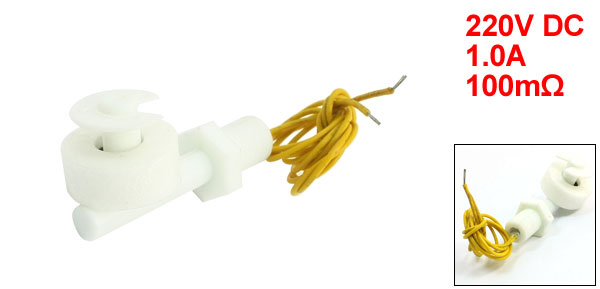

11mm Thread Dia White Water Level Sensor Right Angle Liquid Floating Switch

11mm Thread Dia White Water Level Sensor Right Angle Liquid Floating Switch

More Views

11mm Thread Dia White Water Level Sensor Right Angle Liquid Floating Switch
$4.30

Availability: In stock

OR
Description

Details

11mm Thread Dia White Water Level Sensor Right Angle Liquid Floating Switch

Product Name Float Switch
Max Contact Rating
10W
Max Switching Voltage 100V DC
Max Switching Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 ~ +60 °C / +85 °C
Float Ball Material PP
Float Body Material PP
Float Ball Size(Approx) 10 x 24mm / 0.4" x 1"(T*D)
Thread Dia(Approx) 11mm / 0.43"
Hex Nut Diameter 17mm / 0.67"
Bottom Clip Dia(Approx) 20mm / 0.8"
Body Total Size 54 x 28mm / 2.1" x 1.1"(L*W)
Cable Length 37cm / 14.6"
Color White, Yellow
Weight 12g
Package Content 1 x Float Switch
