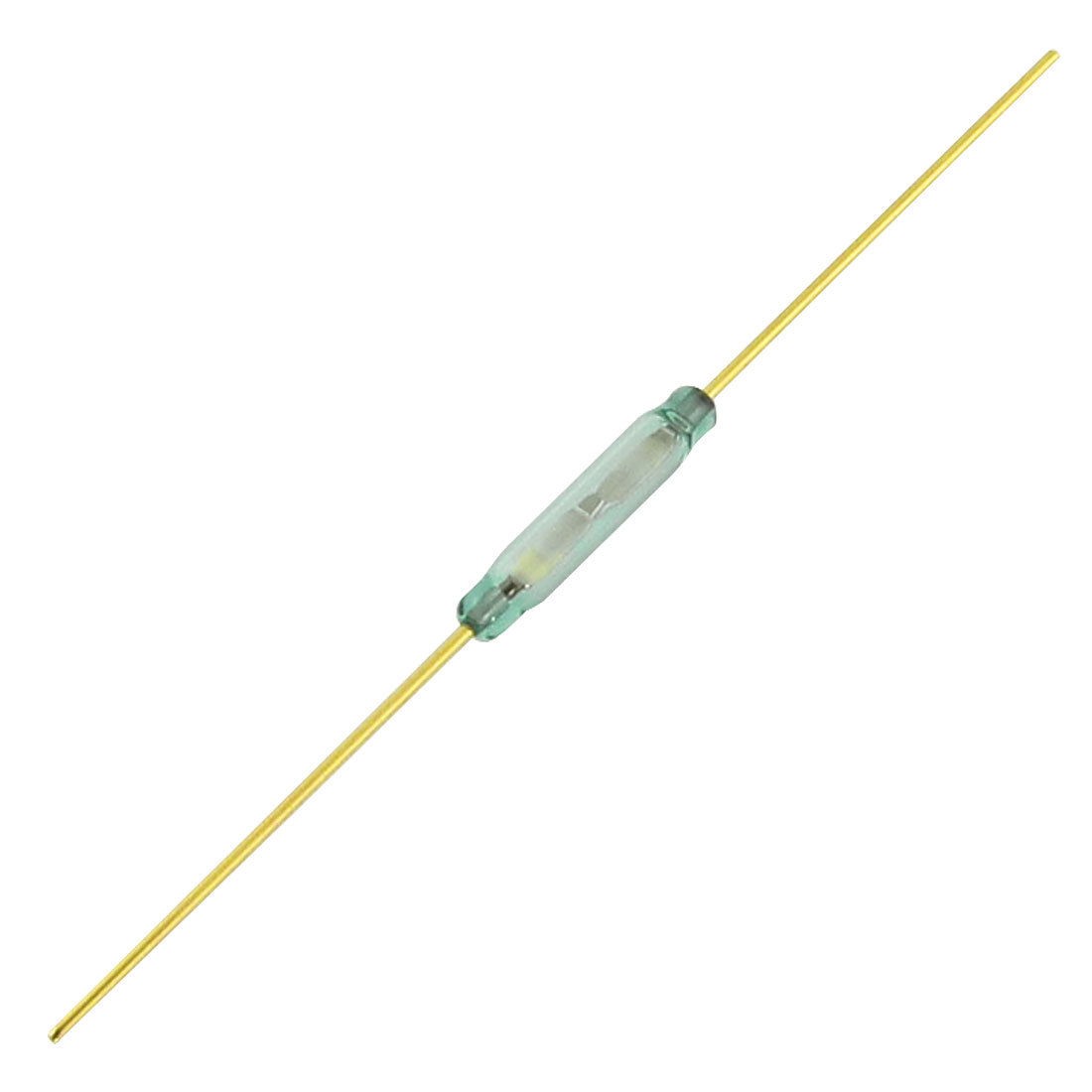

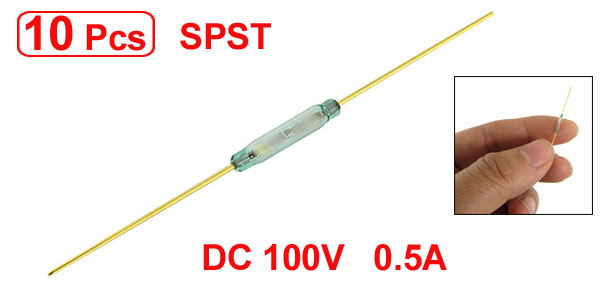

10pcs MKA-10110 10-15AT Magnetic Sensor N/O SPST Contact Reed Switches

More Views

$10.46

Availability: In stock

Qty:

Description

Product Name	Reed Switch
Model	MKA-10110
Contact Type	SPST (Form A)
Max. Contact Rating	10W
Max. Switching Voltage	DC100V
Min. Breakdown Voltage	DC 220V
Max. Switching Current	0.5A
Max. Carry Current	1.0A
Max. Initial Contact Resistance	100mΩ
Min. Insulation Resistance	10¹⁰Ω
Operate time	0.4ms
Bounce time	0.4ms
Release time	0.1ms
Resonant Frequency	4000Hz
Max. Operating Frequency	500Hz
Pull in Value	10-15AT
Min. Drop out Value	5AT
Max. Contact Capacitance	0.7pF
Test Coil Resistance	870Ω
Glass Tube Size (Approx.)	1.7 x 9.8mm/ 0.067" x 0.385"(D*L)
Lead Terminal Size(Approx.)	0.3 x 16mm/ 0.011" x 0.63"(D*L)(Each Side)
Total Length (Approx.)	41.6mm/ 1.639"
Color	Gold Tone, Green
Weight	3g
Package Content	10 x Reed Switch
