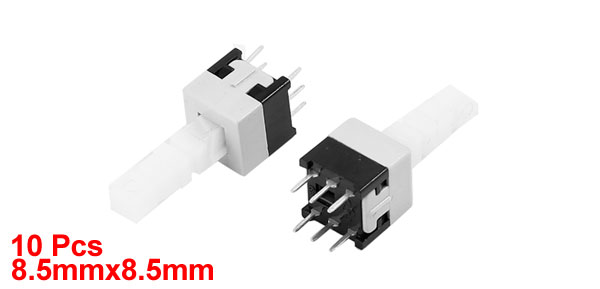

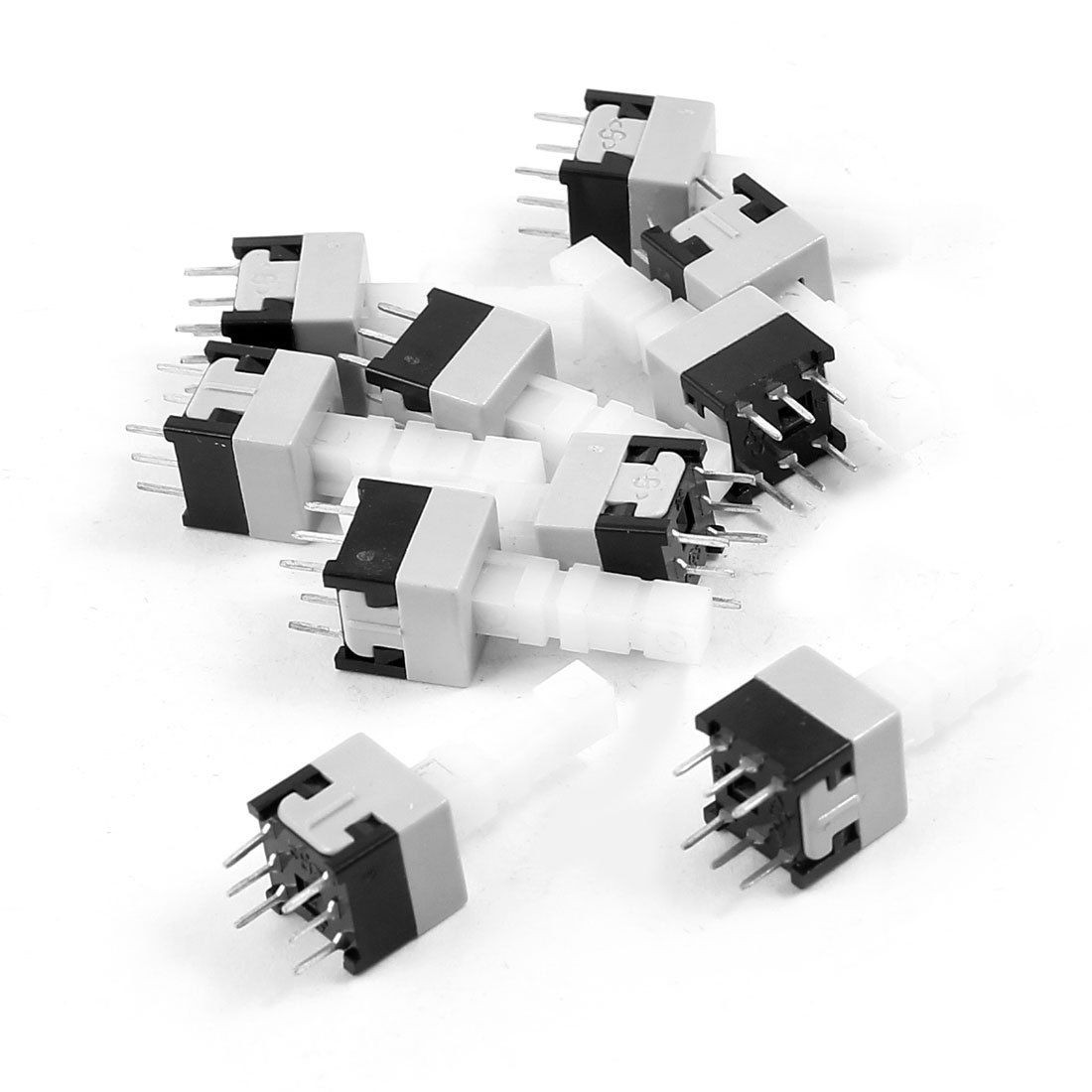

  • 10pcs 8.5 x 8.5mm Self Lock Tactile Push Button Switch Latching 6 Pin DIP

10pcs 8.5 x 8.5mm Self Lock Tactile Push Button Switch Latching 6 Pin DIP

10pcs 8.5 x 8.5mm Self Lock Tactile Push Button Switch Latching 6 Pin DIP

More Views

10pcs 8.5 x 8.5mm Self Lock Tactile Push Button Switch Latching 6 Pin DIP
$8.54

Availability: In stock

OR
Description

Details

10pcs 8.5 x 8.5mm Self Lock Tactile Push Button Switch Latching 6 Pin DIP

Product Name Tactile Push Switch
Contace Resistance <0.02Ω
Insulation Resistance >100MΩ
Operation Force 100-350gf
Rating DC 0.5A 60V
Withstand Voltage AC 250V (50Hz))/min
Life 100, 000 cycles
Operation Temperature -40C to 70C
Square Body Type 8.5 x 8.5mm
Operating Mode Self-lock
Two Row Pin Size 5.5 x 5mm(L*W)
Pin Length 4mm
Knob Overall Size 14 x 4 x 3mm(L*W*H)
Knob Top Size 3 x 3mm(L*W)
Color Black, White, Gray
Material(External) Plastic, Metal
Weight 11g
Package Content 10 x Self-Lock Tactile Switch
