  • 10mm Distance NPN NO Inductive Sensor Proximity Switch DC 6-36V

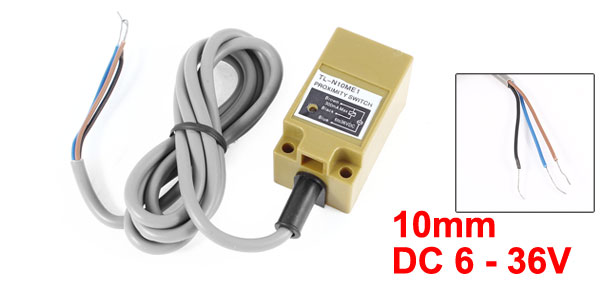

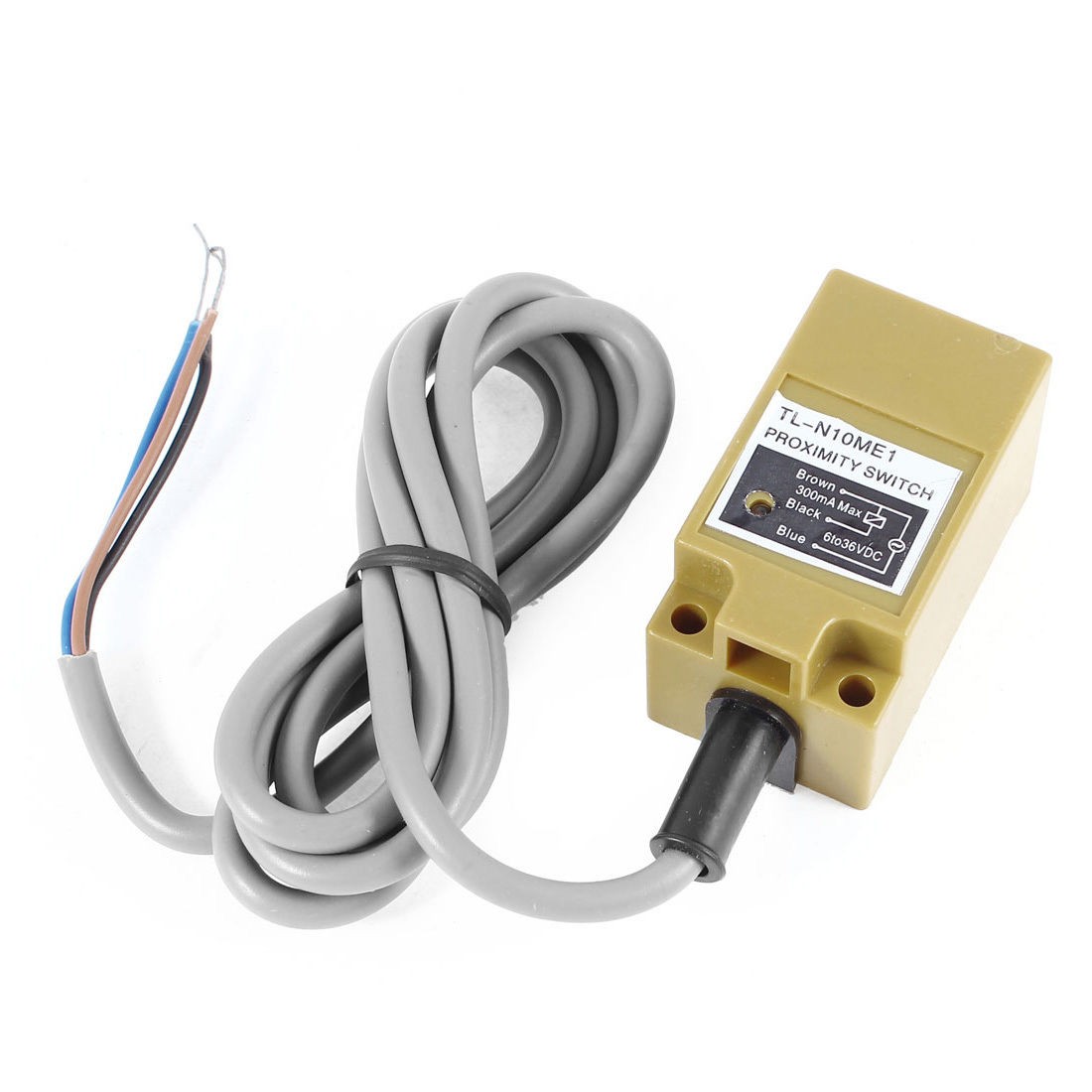

10mm Distance NPN NO Inductive Sensor Proximity Switch DC 6-36V

10mm Distance NPN NO Inductive Sensor Proximity Switch DC 6-36V

More Views

10mm Distance NPN NO Inductive Sensor Proximity Switch DC 6-36V
$12.62

Availability: In stock

OR
Description

Details

10mm Distance NPN NO Inductive Sensor Proximity Switch DC 6-36V

Product Name Proximity Sensor
Model TL-N10ME1
Detecting Distance 10mm ± 10%
Standard Detecting Target 25 x 25 x 1mm
Setting Distance 0 to 8mm
Power Supply DC 6 - 36V
Current Consumption Max. 13mA
Response Frequency 200Hz
Residual Voltage Max. 13V
Control Output 300mA
Insulation Resistance Min. 50M ohm
Dielectric Strength 1000V AC, 50/60Hz for 1 Minute
Ambient Temperature -20C to 60C
Protection IP65
Output Type NPN  NO(Normal Open)
Sensor Size 30 x 30 x 52mm/1.2" x 1.2" x 2.0"(L*W*T)
Cable Length 122cm/4.0ft
Weight 103g
Package Content 1 x Proximity Sensor
