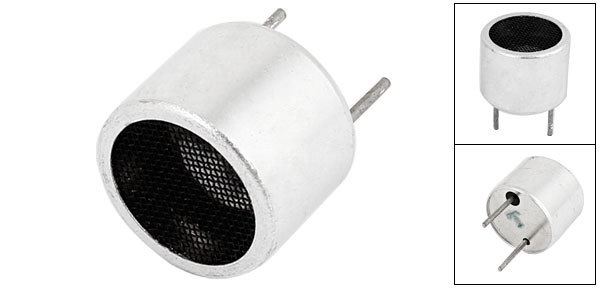

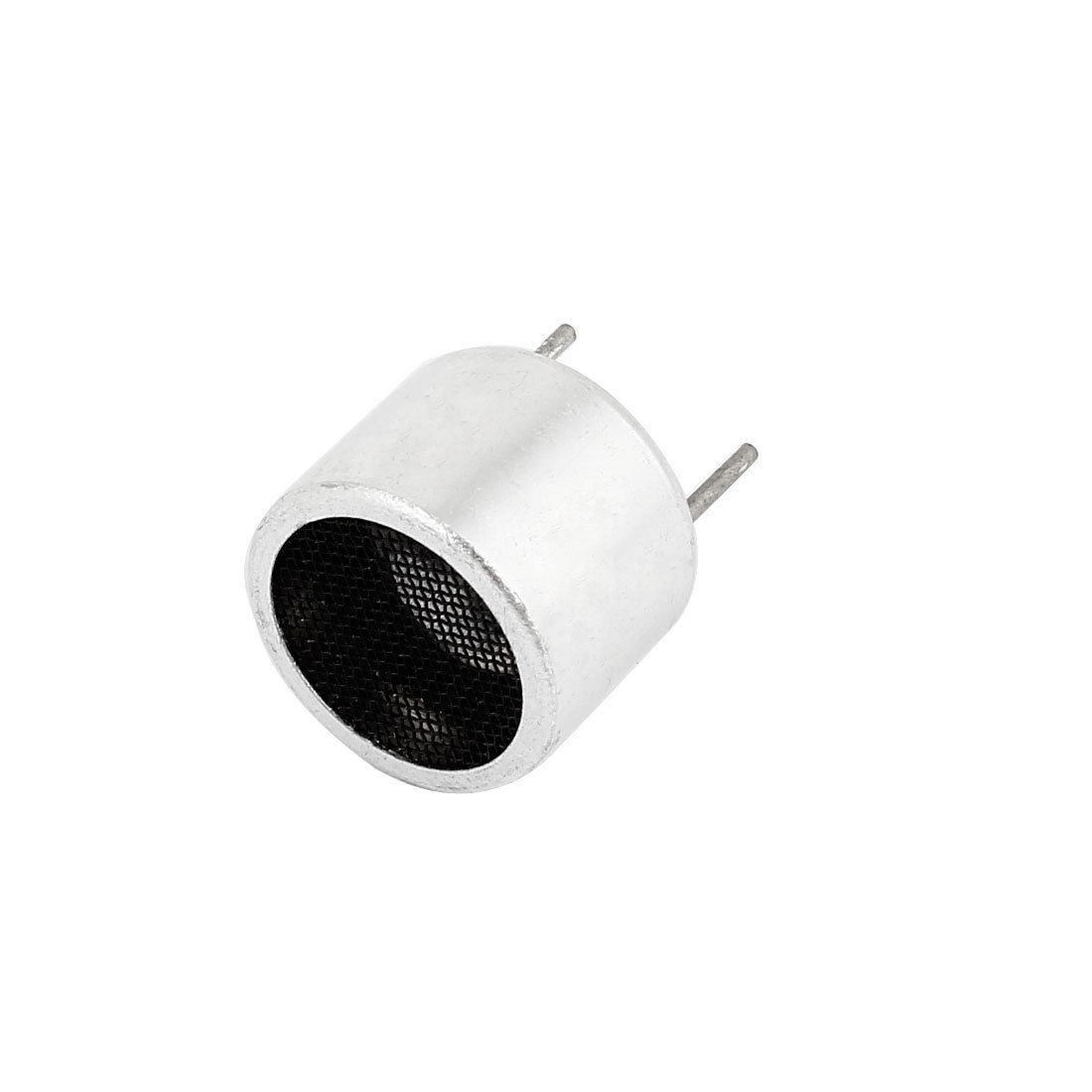

10mm Dia Aluminum 10V 40KHz Ultrasonic Module Distance Measuring Transducer
Product Name Ultrasonic Transducer Model No. TR40-12 Max. Input Voltage 10Vrms Shock Impact 50G T40-12(Transmitter) Center Frequency: 40KHz ± 1KHz
Sound Pressure Level*4: 106dB(Min.)
Attenuation of Sound Pressure Level: -75dB(Max.)
Bandwidth: 5KHz(Min.)
R40-12(Receiver) Center Frequency: 40KHz ± 1KHz
Sensitivity: -67dB/v/ubar(Min.)
-6dB Directivity: 80 Degree
Bandwidth: 1KHz
Capacitance: 1600pF
Operation Temperature -30°C to +80°C Operating Relative Humidity*1 10-90% Storage Temperature -40°C to +90°C Soldering Temperature 240°C Body Size(Each) 10 x 6.8mm / 0.4" x 0.26"(Dia.*T) Pin Size 0.7mm x 8mm(Dia.*L)
Pin Spacing 10mm/ 0.39" Housing Material Aluminum Weight 6g Package Content 1 x Ultrasonic Transducer(The Transmitter and the Receiver) - Reviews
-
