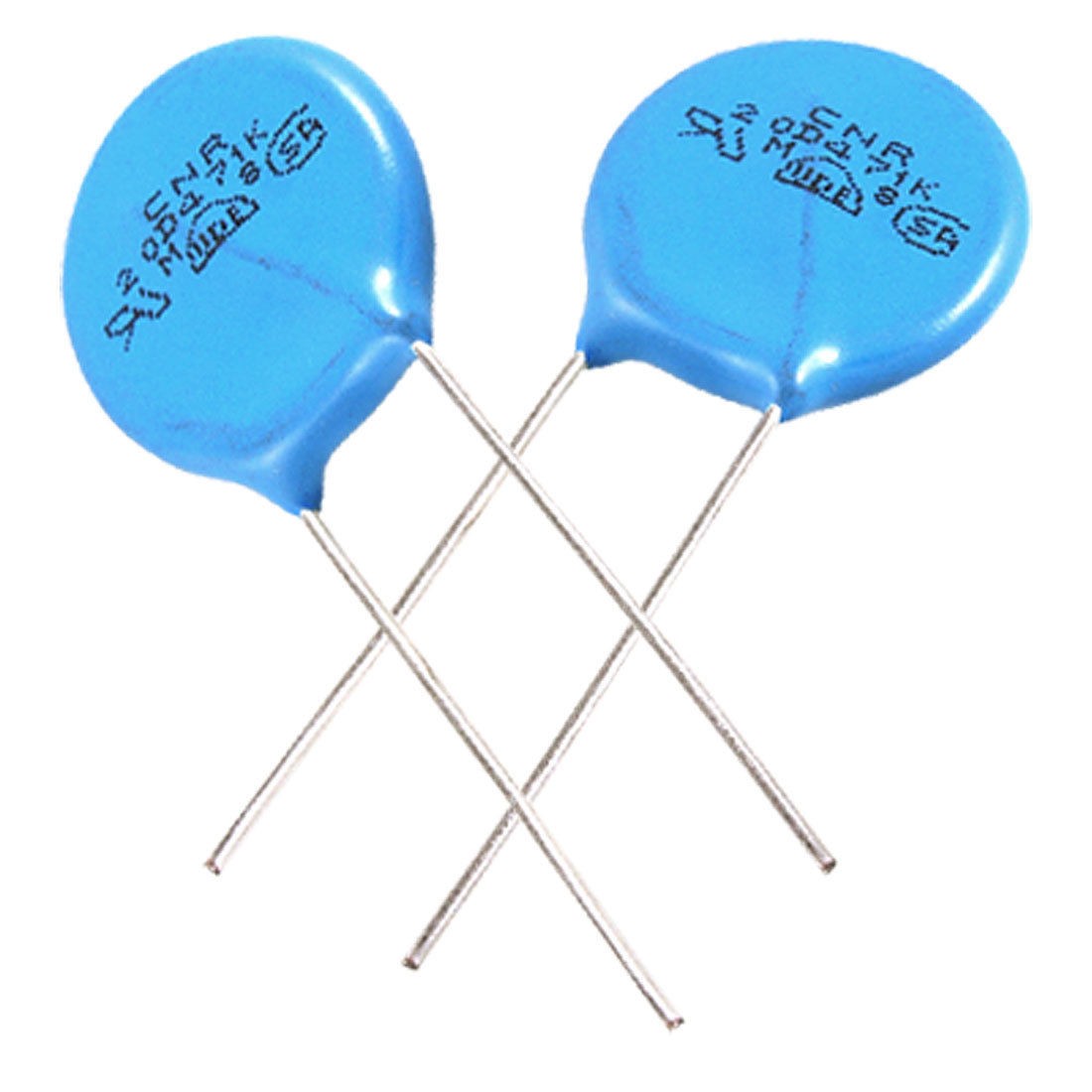

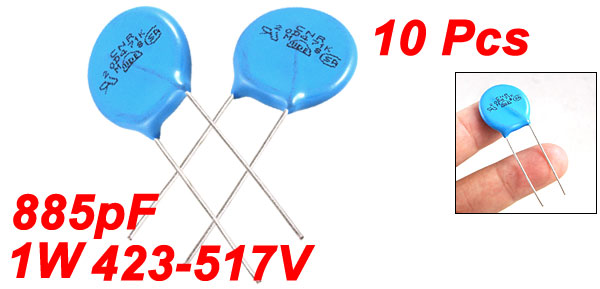

10 x Radial Lead Epoxy Disc Varistors Resistors 20D471K

More Views

$7.76

Availability: In stock

Qty:

Description

Prodcut Name	Voltage Dependent Resistor
Model	20D471K
Max. Allowable Voltage	AC 300V
Max. Allowable Voltage	DC 385V
Max. Clamping Voltage (8/20 µS)	775V (V@10A)
Max. Clamping Voltage (8/20 µS)	100A (Ip)
Varistor Voltage (V@1mA)	423-517V
Max. Peak Current (8/20 µS)	10000A (1 Time)
Max. Peak Current (8/20 µS)	6500A (2 Times)
Typical Capacitance	885pF (1kHz)
Rated Power	1W
Body Size	21 x 2mm/0.8'' x 0.08'' (D*T)
Lead Size	0.5 x 29mm/0.02'' x 1.1'' (D*L)
Lead Spacing	10mm/0.39''
Net Weight	34g
Package Content	10 x Voltage Dependent Resistor
