  • 10 Pcs x PCB Mount 4 Pin 3 Position SP3T 1P3T Slide Switch 90 Deg 0.5A 50V DC

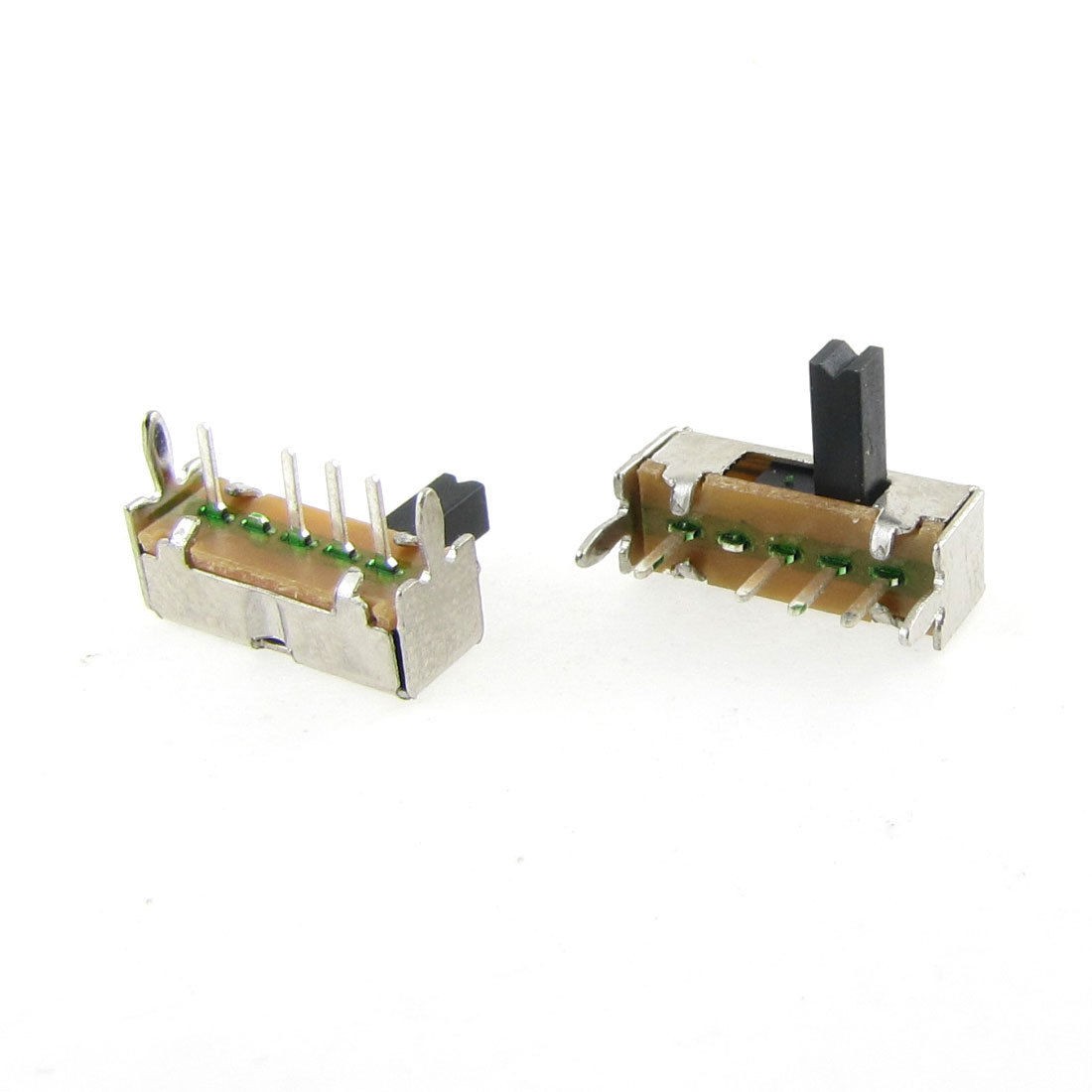

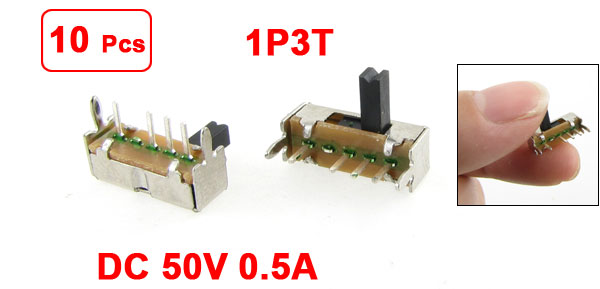

10 Pcs x PCB Mount 4 Pin 3 Position SP3T 1P3T Slide Switch 90 Deg 0.5A 50V DC

10 Pcs x PCB Mount 4 Pin 3 Position SP3T 1P3T Slide Switch 90 Deg 0.5A 50V DC

More Views

10 Pcs x PCB Mount 4 Pin 3 Position SP3T 1P3T Slide Switch 90 Deg 0.5A 50V DC
$3.18

Availability: In stock

OR
Description

Details

10 Pcs x PCB Mount 4 Pin 3 Position SP3T 1P3T Slide Switch 90 Deg 0.5A 50V DC

Product NameSlide Switch
ModelSS13D01-VG5
Action Type1P3T
PowerDC 50V 0.5A
Terminal Quantity4
Terminal Length3mm/ 0.12"
Contact Resistance30mΩ Max
Insulation Resistance100mΩ Min at 500V DC
Withstand VoltageAC 500V for 1 min
Pin Pitch2mm / 0.079" & 4mm / 0.157"
Main Body Size(not include Pins & Knob)13 x 9 x 4mm/ 0.51" x 0.35" x 0.16"(L*W*H)
Overall Size13 x 9 x 7mm/ 0.51" x 0.35" x 0.28"(L*W*H)
Knob Size2 x 2 x 5mm/ 0.07" x 0.07" x 0.2"(L*W*H)
Material(External)Plastic, Metal
Main ColorSilver Tone, Black
Weight7g
Package Content10 x Slide Switch
