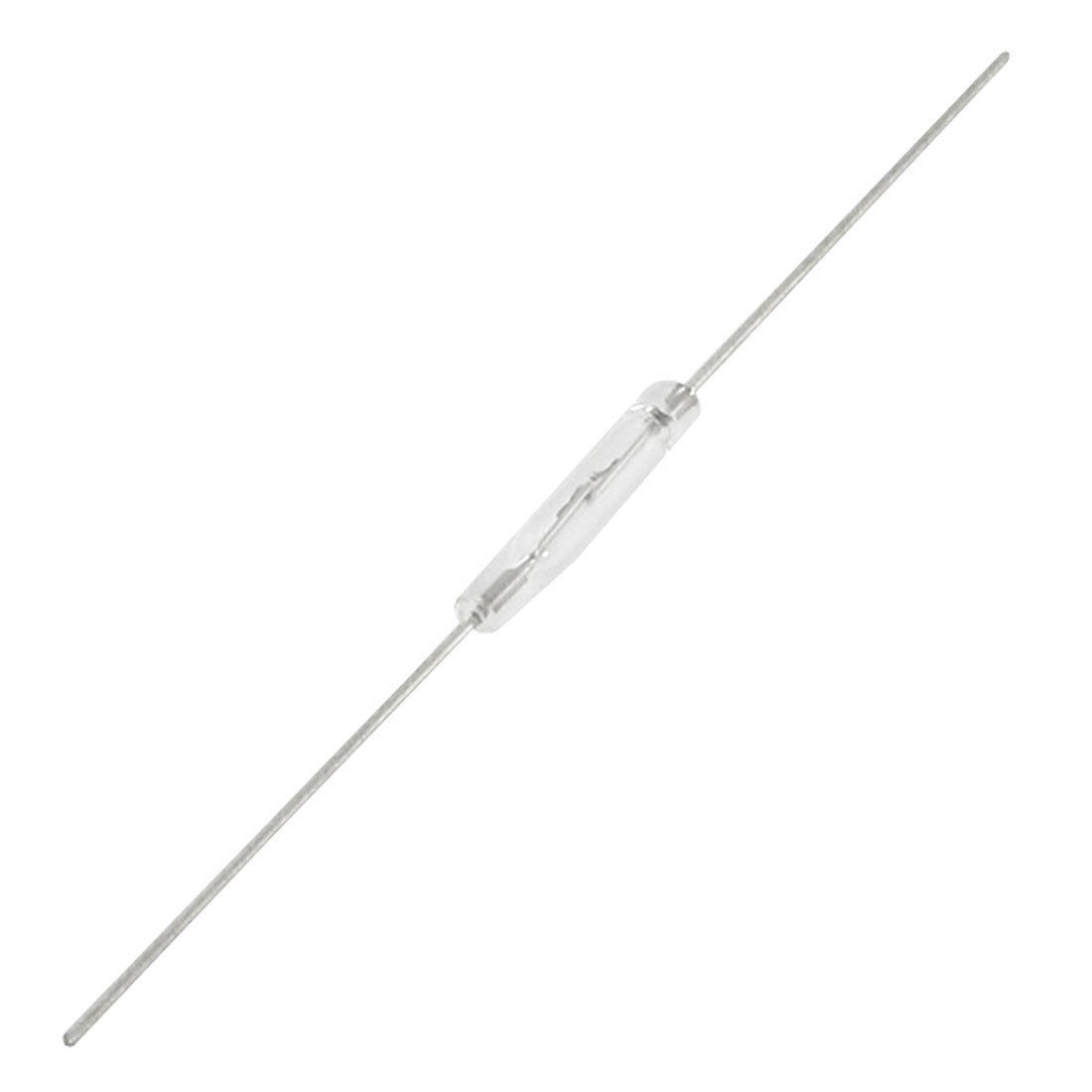

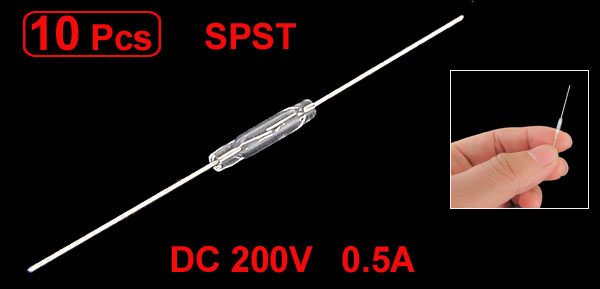

10 Pcs TS-560 Clear Glass Tube N/O SPST Reed Switches 15-20AT

More Views

$10.44

Availability: In stock

Qty:

Description

Product Name	Reed Switch
Model	TS-560
Contact Type	SPST (Form A)
Max. Contact Rating	10W
Max. Switching Voltage	DC 200V
Max. Switching Current	0.5A
Max. Carry Current	1.5A
Max. Initial Contact Resistance	150mΩ
Min. Insulation Resistance	10Ω
Operate time	0.5ms
Bounce time	0.4ms
Release time	0.2ms
Max. Operating Frequency	500Hz
Pull in Value	15-20AT
Glass Tube Size (Approx.)	2 x 14mm/ 0.078" x 0.55"(D*L)
Lead Terminal Size(Approx.)	0.4 x 20.5mm/ 0.016" x 0.807"(D*L)(Each Side)
Total Length (Approx.)	63mm/ 2.48"
Color	Silver Tone, Clear
Weight	3g
Package Content	10 x Reed Switch
