  • 10 Pcs 6.7mm High Knob 6 Pin 3 Position 2P2T DPDT Panel Slide Switch 0.5A 50V DC

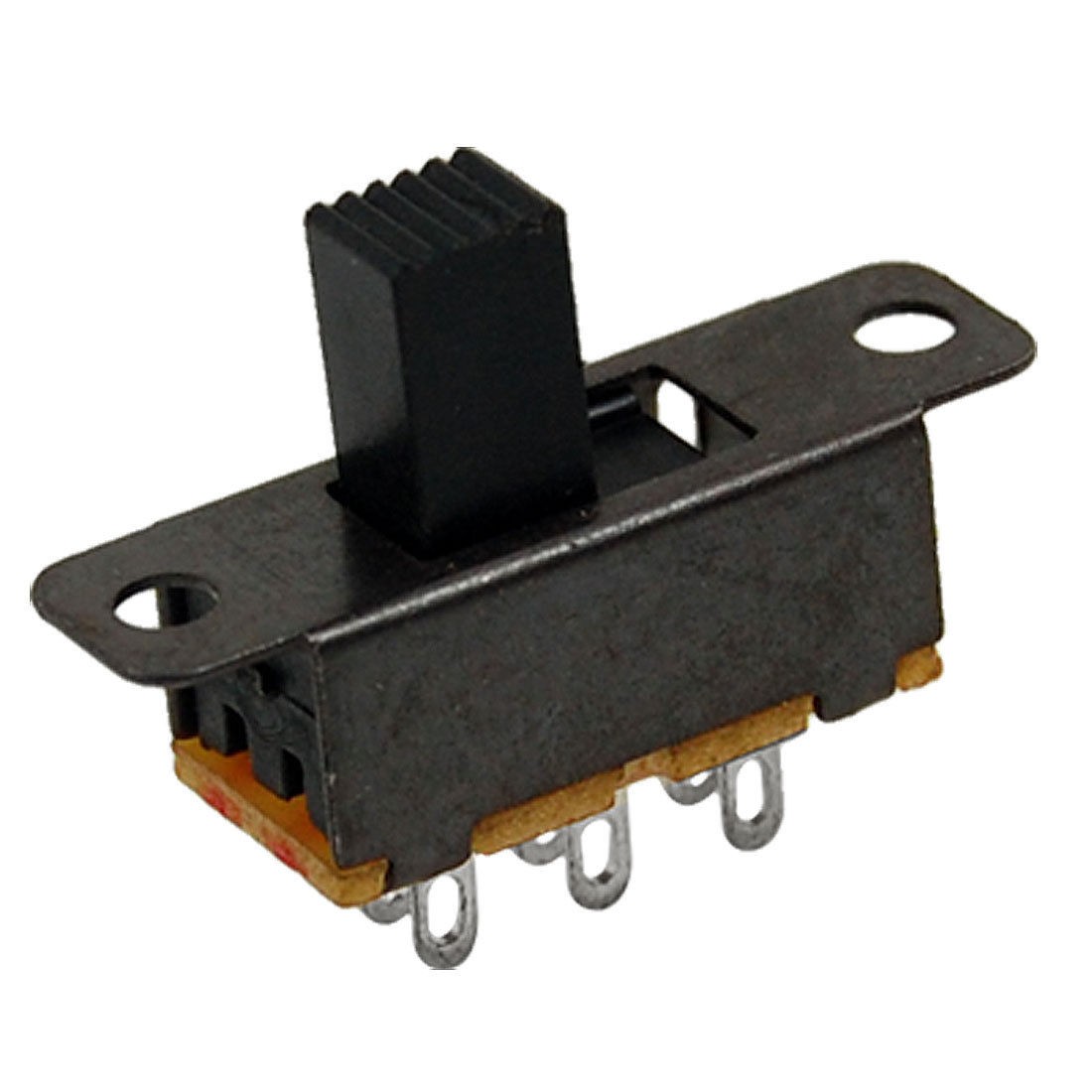

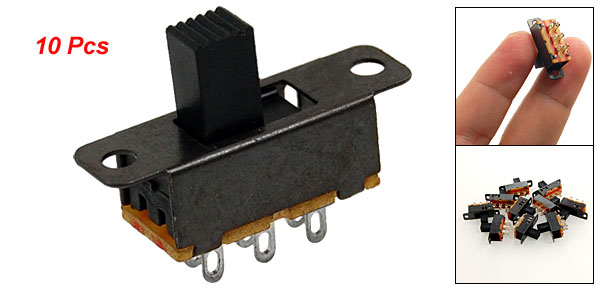

10 Pcs 6.7mm High Knob 6 Pin 3 Position 2P2T DPDT Panel Slide Switch 0.5A 50V DC

10 Pcs 6.7mm High Knob 6 Pin 3 Position 2P2T DPDT Panel Slide Switch 0.5A 50V DC

More Views

10 Pcs 6.7mm High Knob 6 Pin 3 Position 2P2T DPDT Panel Slide Switch 0.5A 50V DC
$3.95

Availability: In stock

OR
Description

Details

10 Pcs 6.7mm High Knob 6 Pin 3 Position 2P2T DPDT Panel Slide Switch 0.5A 50V DC

Product Name Slide Switch
Model SS23D32
Type 2 Pole 2 Throw
Terminal Quantity 6 Pcs
Working Power 0.5A 50V DC
Contact Resistance 30mΩ Max
Insulation Resistance 100mΩ Min at 500V DC
Withstand Voltage AC 500V for 1 min
Mounting Type Through Hole
Hole Diameter 2.2mm / 0.08"
Terminal Size(Each One) 4 x 1.5mm / 0.16" x 0.05"( L * W)
Switch Total Size 23 x 7 x 13mm / 0.9" x 0.27" x 0.51" (L * W* H)
Knob Size 4.4 x 3.5 x 6.7mm / 0.17" x 0.14" x 0.26"(L * W * H)
Material(External) Plastic, Metal
Main Color Silver Tone, Black
Weight 19g
Package Content 10 x Slide Switch
