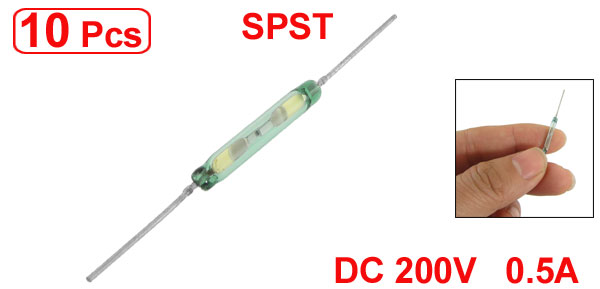

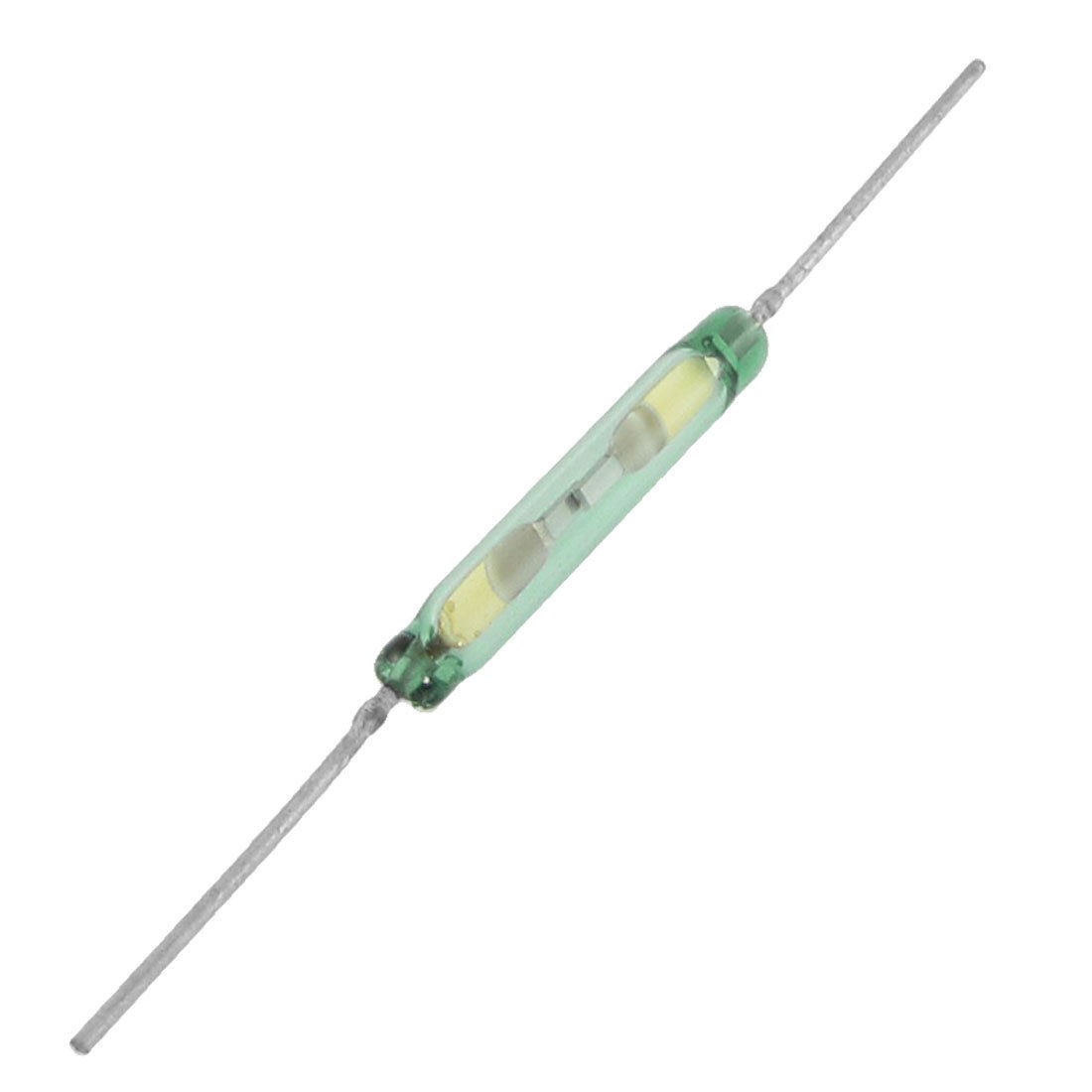

10 Pcs 10-15AT 18.5mm Glass Tube Length SPST N/O Reed Switches

10 Pcs 10-15AT 18.5mm Glass Tube Length SPST N/O Reed Switches

More Views

10 Pcs 10-15AT 18.5mm Glass Tube Length SPST N/O Reed Switches
$8.50

Availability: In stock

OR
Description

Details

10 Pcs 10-15AT 18.5mm Glass Tube Length SPST N/O Reed Switches

Product Name Reed Switch
Contact Type SPST (Form A)
Max. Contact Rating 10W
Max. Switching Voltage DC 200V
Max. Switching Current 0.5A
Max. Carry Current 1.5A
Max. Initial Contact Resistance 150mΩ
Min. Insulation Resistance 10Ω
Operate time 0.5ms
Bounce time 0.4ms
Release time 0.2ms
Max. Operating Frequency 500Hz
Pull in Value 10-15AT
Glass Tube Size (Approx.) 3.5 x 18.5mm/ 0.137" x 0.728"(D*L)
Lead Terminal Size(Approx.) 0.5 x 16.5mm/ 0.02" x 0.65"(D*L)(Each Side)
Total Length (Approx.) 49mm/ 1.93"
Color Silver Tone, Green
Weight 3g
Package Content 10 x Reed Switch
