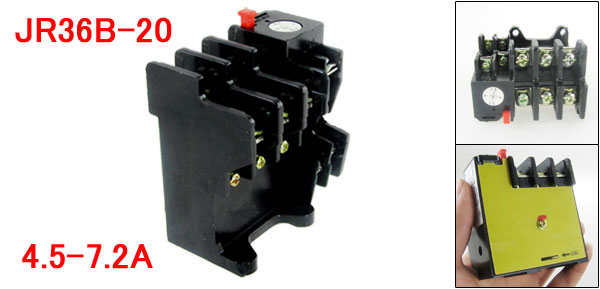

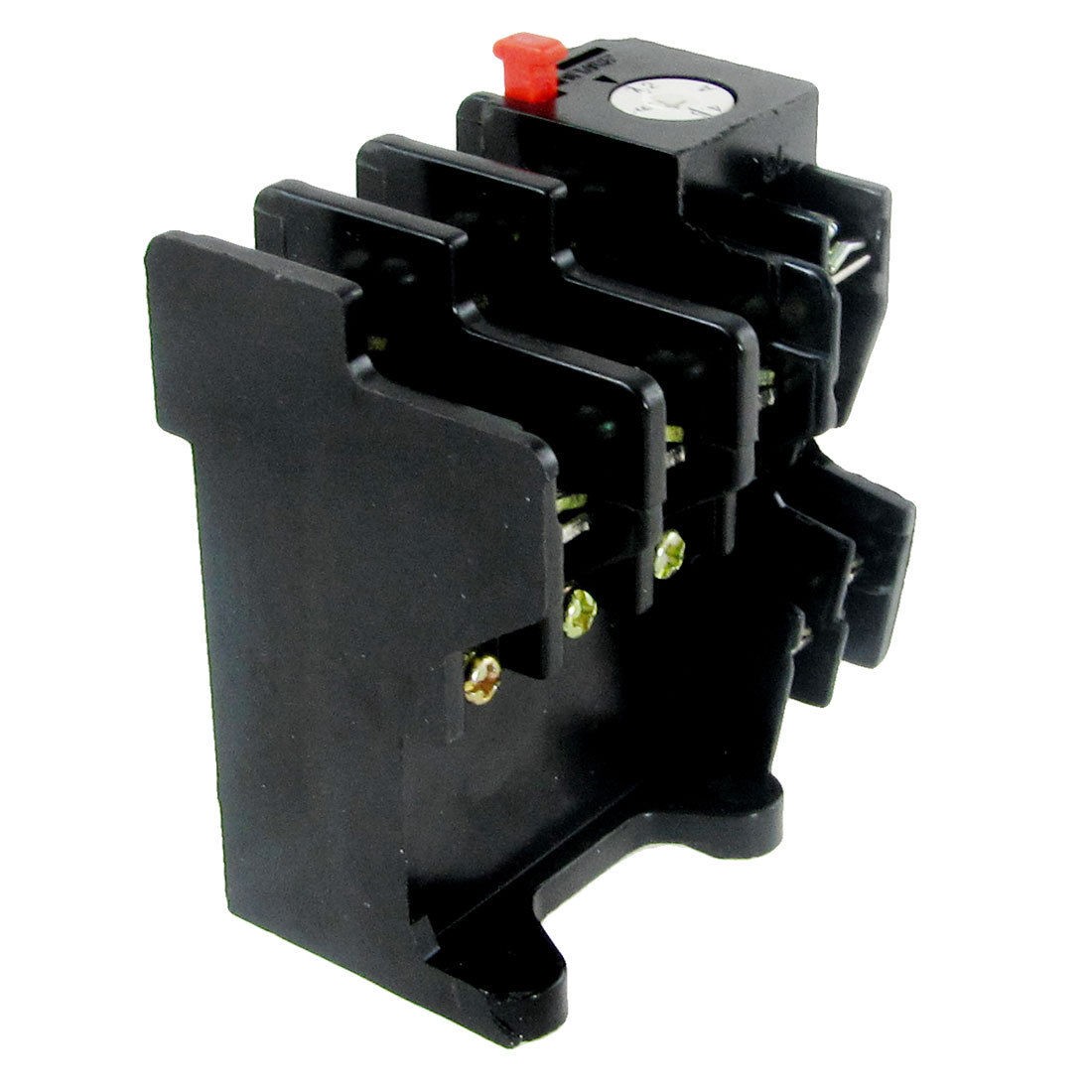

1 NO 1 NC AC Thermal Overload Relay 4.5-7.2A 20A 660V 10A/380V

1 NO 1 NC AC Thermal Overload Relay 4.5-7.2A 20A 660V 10A/380V

More Views

1 NO 1 NC AC Thermal Overload Relay 4.5-7.2A 20A 660V 10A/380V
$11.30

Availability: In stock

OR
Description

Details

1 NO 1 NC AC Thermal Overload Relay 4.5-7.2A 20A 660V 10A/380V

Product Name Thermal Overload Relay
Model JR36B-20
Thermal Relay Rated Current 20A
Adjusting Current Range 4.5-7.2A
Thermal Element Rated Current 7.2A
Auxiliary Ui:AC 380V
Ith: 10A
AC-15: 180VA
Contact Type: 1 NO + 1 NC
Primary Ui: AC 660V
Tripping Class: 10A
Fit Cable <=28mm²
Fixing Holes Size 4.4 x 5.8mm / 0.17" x 0.23"(L*W)
Fixing Holes Spacing 38mm / 1.5"
Overall Size (Approx.) 70 x 75 x 47mm / 2.7" x 3" x 1.8" (L * W * T)
Color As Picture Shown
Weight 173g
Package Content 1 x Thermal Overload Relay
