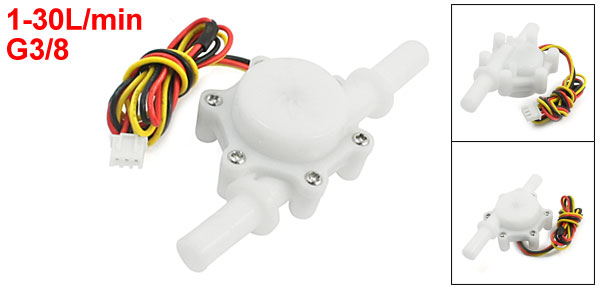

1-30L/min G3/8 Double Ended Intubation Hall Effect Water Flow Sensor

1-30L/min G3/8 Double Ended Intubation Hall Effect Water Flow Sensor

More Views

1-30L/min G3/8 Double Ended Intubation Hall Effect Water Flow Sensor
$10.03

Availability: In stock

OR
Description

Details

1-30L/min G3/8 Double Ended Intubation Hall Effect Water Flow Sensor

Product Name Water Flow Sensor
Model SEN-HZ83C
Flow Range 1-30L/min
Working Voltage & Current DC3V-18V, 10mA
Rated Voltage DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V
Low Level of Pulse Output <0.5V
Max Pressure 1.75Mpa
Insulation Performance(Min.) 100MΩ
Connector Type 3Pin JST Connector
Main Material POM
Total Size 93 x 43 x 25mm / 3.7" x 1.7" x 1"(L*W*T)
Outlet=Inlet Outer Diameter G3/8
Cable Length 39cm / 15.4"
Body Color White
Weight 37g
Package Content 1 x Water Flow Sensor
