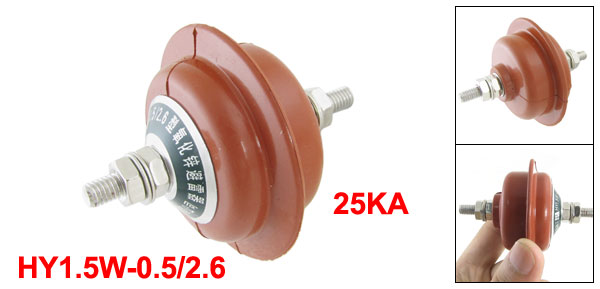

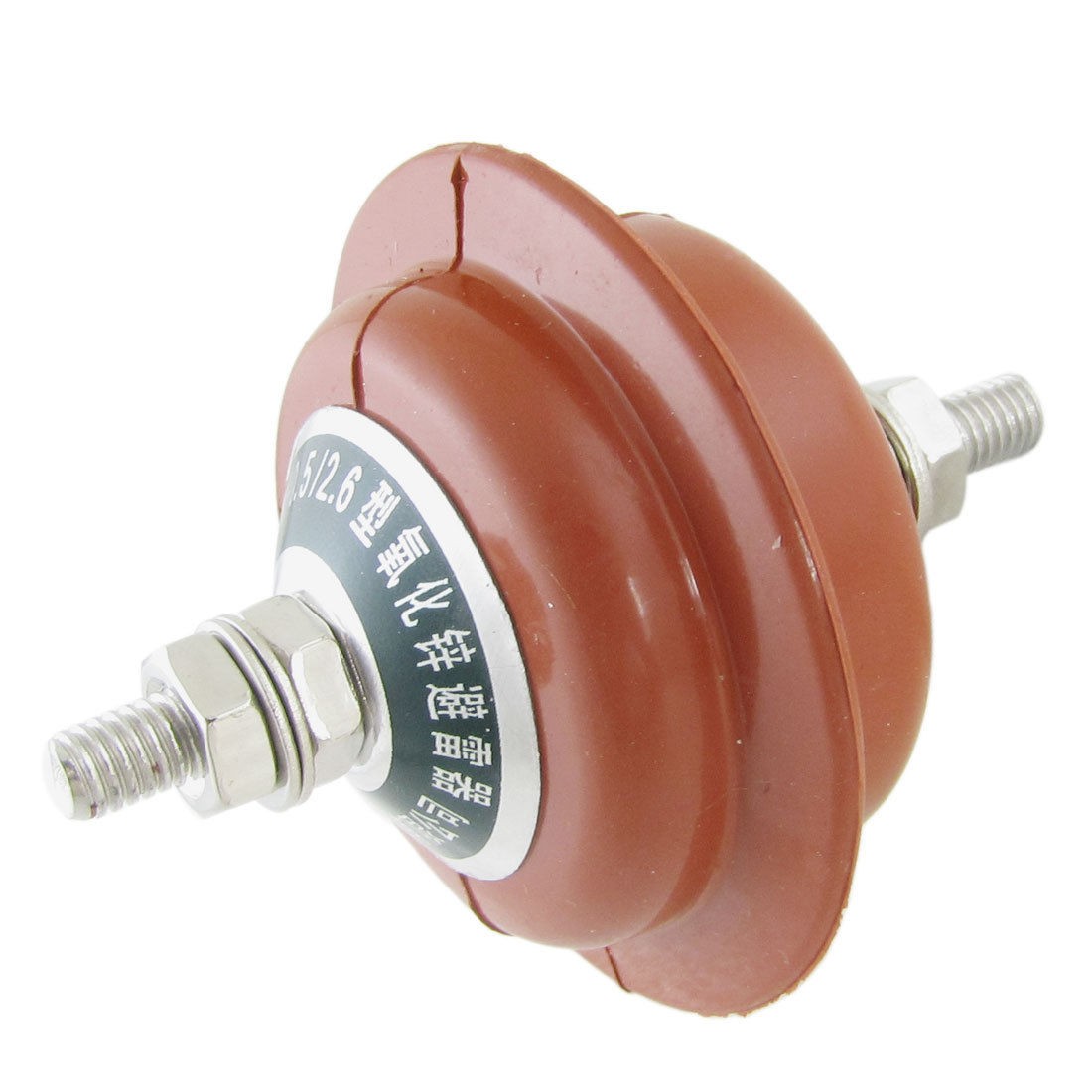

0.5KV Zinc Oxide Low Voltage Lightning Arrester HY1.5W-0.5/2.6

More Views

$7.93

Availability: In stock

Qty:

Description

Product Name	Low Voltage Type Lightning Arrester
Model No.	HY1.5W-0.5/2.6
System Rated Voltage	0.38KV
Arrester Rated Voltage	0.5KV
Continuous Operating Voltage	0.42KV
DC Reference Voltage(U1mA)	1.2(>=KV)
8/20us Residual Voltage Under Lightning Surge Current	2.6(<=KV)
2ms Square-Wave Flow Capacity	75A
4/10us High Current Impulse Withstand	25KA
Material	Silicon Rubber Housing, Zinc Oxide
Thread Diameter	5.8mm / 0.228"
Overall Size(Approx.)	73 x 56mm / 2.9" x 2.2"(L*Diameter)
Weight	89g
Package Content	1 x Low Voltage Type Lightning Arrester
