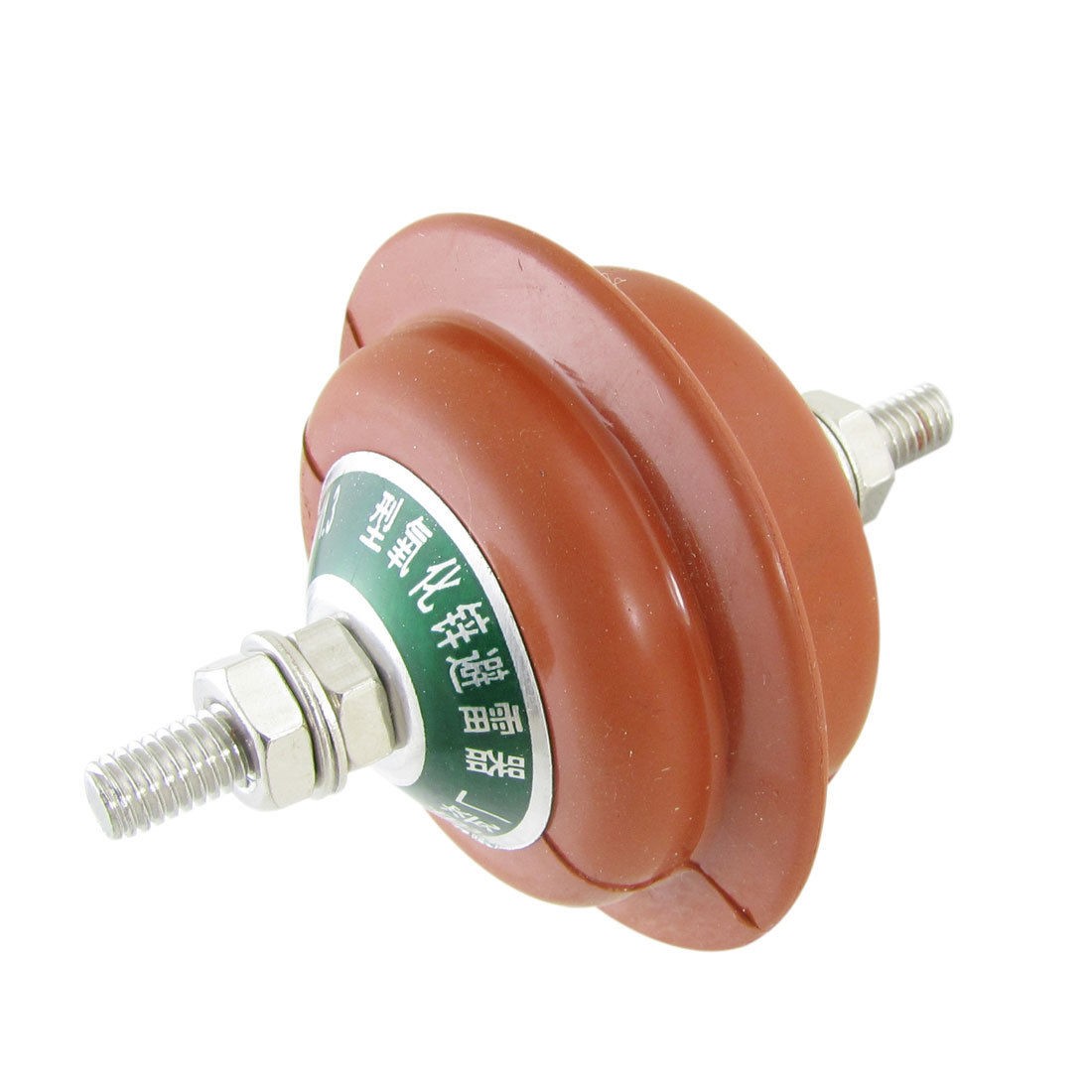

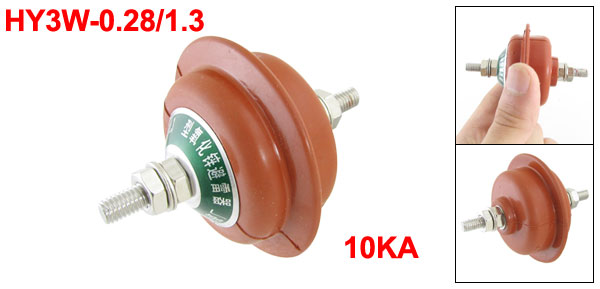

0.28KV Zinc Oxide Low Voltage Lightning Arrester HY3W-0.28/1.3

More Views

$7.09

Availability: In stock

Qty:

Description

Product Name	Low Voltage Type Lightning Arrester
Model No.	HY3W-0.28/1.3
System Rated Voltage	0.28 / 0.4KV
Arrester Rated Voltage	0.28KV
Continuous Operating Voltage	0.24KV
DC Reference Voltage(U1mA)	0.6(>=KV)
8/20us Residual Voltage Under Lightning Surge Current	1.3(<=KV)
2ms Square-Wave Flow Capacity	100A
4/10us High Current Impulse Withstand	10KA
Material	Silicon Rubber Housing, Zinc Oxide
Thread Diameter	5.8mm / 0.228"
Overall Size(Approx.)	74 x 56mm / 2.9" x 2.2"(L*Diameter)
Weight	85g
Package Content	1 x Low Voltage Type Lightning Arrester
