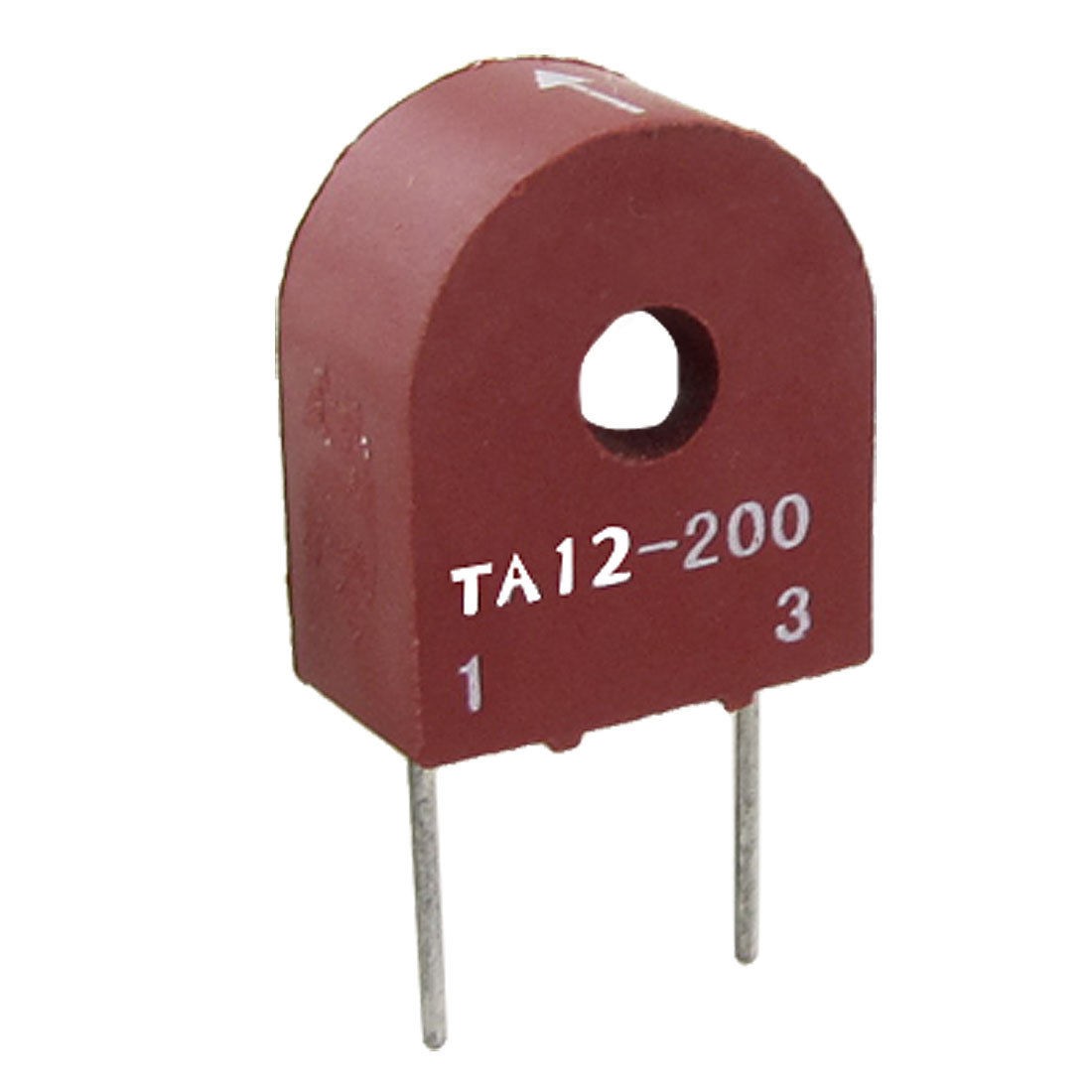

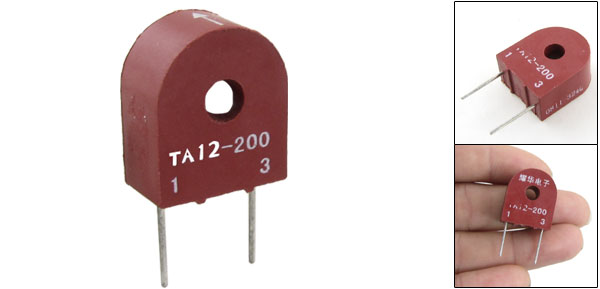

0-5A Input Epoxy Resin Embedding AC Current Transformer

0-5A Input Epoxy Resin Embedding AC Current Transformer

More Views

0-5A Input Epoxy Resin Embedding AC Current Transformer
$8.02

Availability: In stock

OR
Description

Details

0-5A Input Epoxy Resin Embedding AC Current Transformer

Product NameAC Current Transformer
Model No.TA12-200
Ratio2000:1
Input Current0-5A
Output Current0-2.5mA
Sample Resistance800Ω
Sampling Voltage2V
Nonlinear Scale<=0.2%
Phase Drift<=5'
Working Frequency20Hz-20KHz
Working Temperature-55°C--+85°C
Dielectric Strength6KV AC/1min
Pin Diameter0.8mm/0.031"
Distance Between Two Pins12.7mm/0.5"
Shot-hole Diameter5mm/0.196"
Mounting Height20mm/0.787"
Overall Size(Approx.)16.8 x 9 x 32mm/0.66" x 0.35" x 1.26"(L*W*H)
ColorRed
Weight7g
Package Content1 x AC Current Transformer
