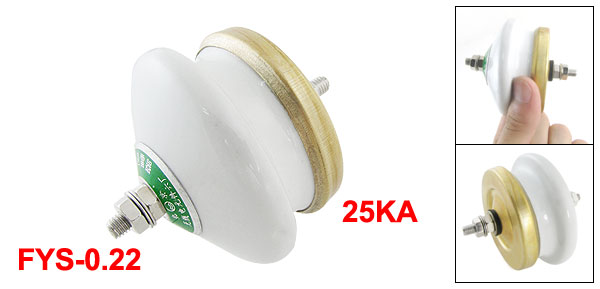

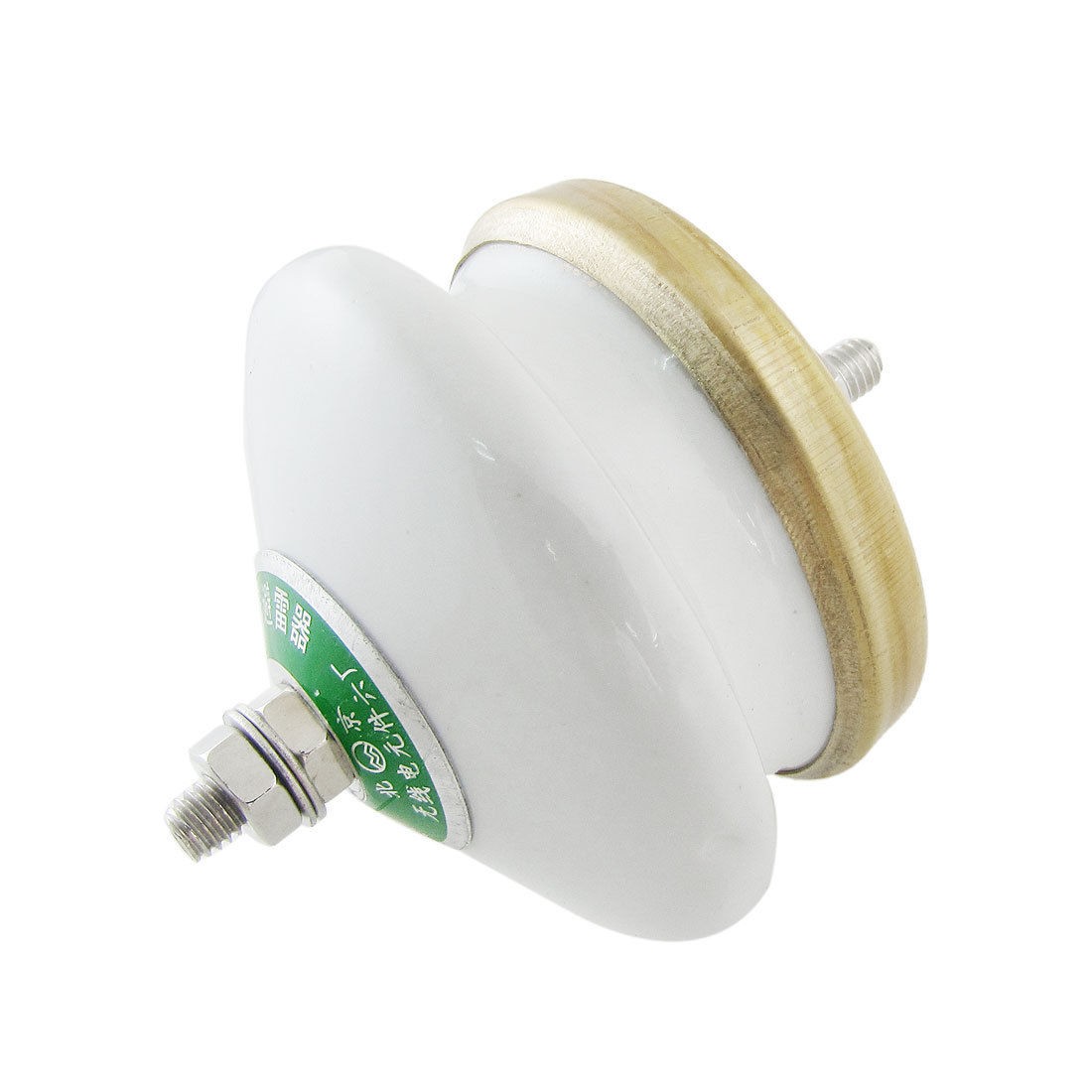

0 22KV 0 38KV Low Voltage Type Ceramic Surge Lightning Arrester FYS 0 22

More Views

$9.45

Availability: In stock

Qty:

Description

Product Name	Low Voltage Type Lightning Arrester
Model No.	FYS-0.22
System Rated Voltage	0.28KV
Arrester Rated Voltage	0.22(0.38)KV
Continuous Operating Voltage	0.24KV
DC Reference Voltage(U1mA)	0.6(>=KV)
8/20us Residual Voltage Under Lightning Surge Current	1.3(<=KV)
2000us Square-Wave Flow Capacity	50A
4/10us High Current Impulse Withstand	25KA
Material	Ceramic, Metal
Thread Diameter	M6(6mm)
Overall Size(Approx.)	79 x 70mm / 3.1" x 2.8"(L*Diameter)
Weight	203g
Package Content	1 x Low Voltage Type Lightning Arrester

Reviews

Be the first to review this product
